1X19 Round Strand Wire Rope
- Round Type: Single-strand wire rope

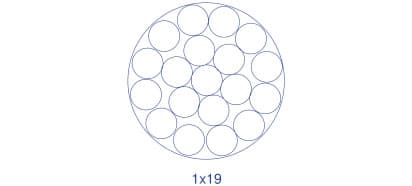

- Rope Construction: 1×19
- Application: It is used in large-scale field structure
parts, suspension cables, tension tower. - Modulus of Elasticity: 150GPa
| Rope Nominal Diameter (mm) | Approx. Nominal Weight (kg/100m) | Nominal Metal cross sectional area (mm 2) |
| 10 | 48.5 | 58.4 |
| 11 | 58.7 | 70.7 |
| 12 | 69.8 | 84.1 |
| 13 | 82 | 98.8 |
| 14 | 95.1 | 115 |
| 14.5 | 102 | 123 |
| 16 | 124 | 150 |
| 18 | 157 | 189 |
| 19 | 175 | 211 |
| 20 | 194 | 234 |
| 22 | 235 | 283 |
| 26 | 328 | 395 |
| 28 | 380 | 458 |
| 29 | 408 | 491 |
| 30 | 436 | 526 |
|
Rope Nominal Diameter (mm) |
Nominal Tensile Strength MPa |
||
| 1570 | 1670 | 1770 | |
|
Minimum Breaking Strength (kN) |
|||
| 10 | 82.6 | 87.7 | 93.1 |
| 11 | 99.9 | 106 | 113 |
| 12 | 119 | 126 | 134 |
| 13 | 140 | 148 | 157 |
| 14 | 162 | 172 | 182 |
| 14.5 | 174 | 184 | 196 |
| 16 | 211 | 224 | 238 |
| 18 | 268 | 284 | 302 |
| 19 | 298 | 317 | 336 |
| 20 | 330 | 351 | 372 |
| 22 | 400 | 424 | 451 |
| 26 | 558 | 593 | 629 |
| 28 | 647 | 687 | 730 |
| 29 | 694 | 737 | 783 |
| 30 | 743 | 789 | 838 |
